Beer box mold

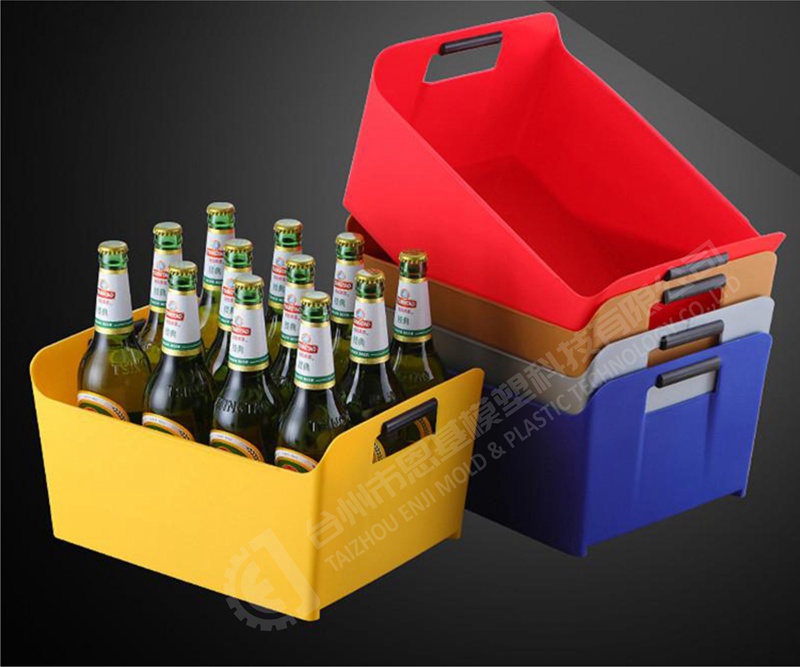

We produce beer bottles,coke bottles turnover box mold, and provide customers with bottle turnover box molding solutions! Our turnover box mold design has four inclined roofs, and the four side walls are contacted through the handle.For this turnover box, we can choose one out of two, the molding cycle can reach 35seconds, and the mold can be demoulded automatically.The turnover die has four side sliders, four inclined tops in the core, and a slider connecting rod at the four corners of the cavity.This popular design can protect the bottle from the vibration of the truck and the collision between Coke bottles.



模具名称:瓶类周转箱

Mold Name: bottles crate mold

产品尺寸:400x300x280mm

Product size: 400x30ox280mm

产品描述:瓶类周转箱

Product Description: bottles crate mold

模腔:1

Cavity: 1 cavity

模具尺寸:860x760x700mm

Mold size: 860x760x700mm

适用机器:SE-580T

Suitable machine: SE-580T

模具材料:2738

mold material:2738

模具注塑系统:4点针阀热流道

lnjection system: 4-point needle valve hot runner

模具顶出系统:推料板

Mold ejection system: ejector plate

模具循环时间:40s

Mold cycle time: 4os

模具寿命:200

Mold life: 2000000 shots

交货时间:75个工作日

Delivery time: 75 working days

模具特点:速度快,寿命长

Mold features: fast speed,long life
